Exploration of climate sensitive of different urban parameters using clmu-app

As the examples describe, one of the useful functions of clmu-app is to explore the urban climate with changing urban surface parameters. By investigating this, we can gain information on urban planning/design or offer opportunities for other urban related subjects.

Here we explored the 24 girds that contain the most developed cities in the world (ref: https://en.wikipedia.org/wiki/Globalization_and_World_Cities_Research_Network ).

The CLMU can simulate 3 urban classes. Only the high density urban is considered in this experiment as HD has an obvious urban effect and is ubiquitous in each grid. We selected three categories of urban parameters, including morphological, radiative and thermal parameters, for sensitive analysis.

Results preview

Env: clmu-app

• Forcing: DATM SSP370

• Simulation year: 2055

• New York Grid

• Compset:SSP370_DATM%CPLHIST_CLM50%SP_SICE_SOCN_SROF_SGLC_SWAV

• Resolution: f09_g17

• Run type: cold start

Experiment: each HD urban surface parameters increased by 1.2 times respectively.

Variable	Long name	Units	Category
ALB_ROOF	albedo of roof	unitless	radiative
ALB_WALL	albedo of wall	unitless	radiative
ALB_IMPROAD	albedo of impervious road	unitless	radiative
CANYON_HWR	canyon height to width ratio	unitless	morphological
HT_ROOF	height of roof	meters	morphological
THICK_ROOF	thickness of roof	meters	morphological
THICK_WALL	thickness of roof	meters	morphological
TK_ROOF	thermal conductivity of roof	W/m*K	thermal
TK_WALL	thermal conductivity of wall	W/m*K	thermal
TK_IMPROAD	thermal conductivity of impervious road	W/m*K	thermal
CV_ROOF	volumetric heat capacity of roof	J/m^3*K	thermal
CV_WALL	volumetric heat capacity of wall	J/m^3*K	thermal
TK_IMPROAD	volumetric heat capacity of impervious road	J/m^3*K	thermal

Primary results:

• TSA: Surface 2m temperature (yearly average), K

• TSA difference: difference in result of changed urban surface and no change.

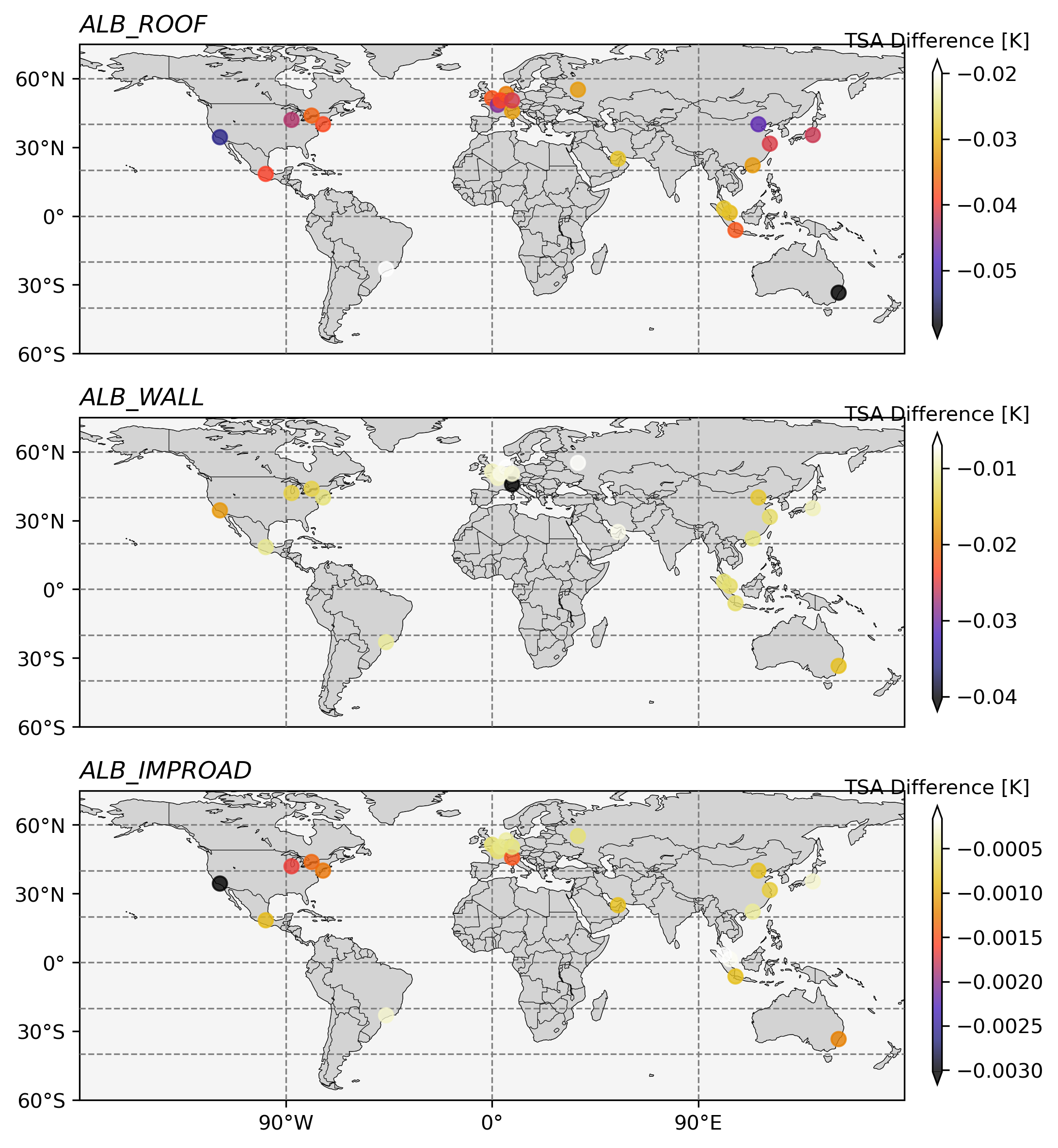

Radiative sensitives.

---

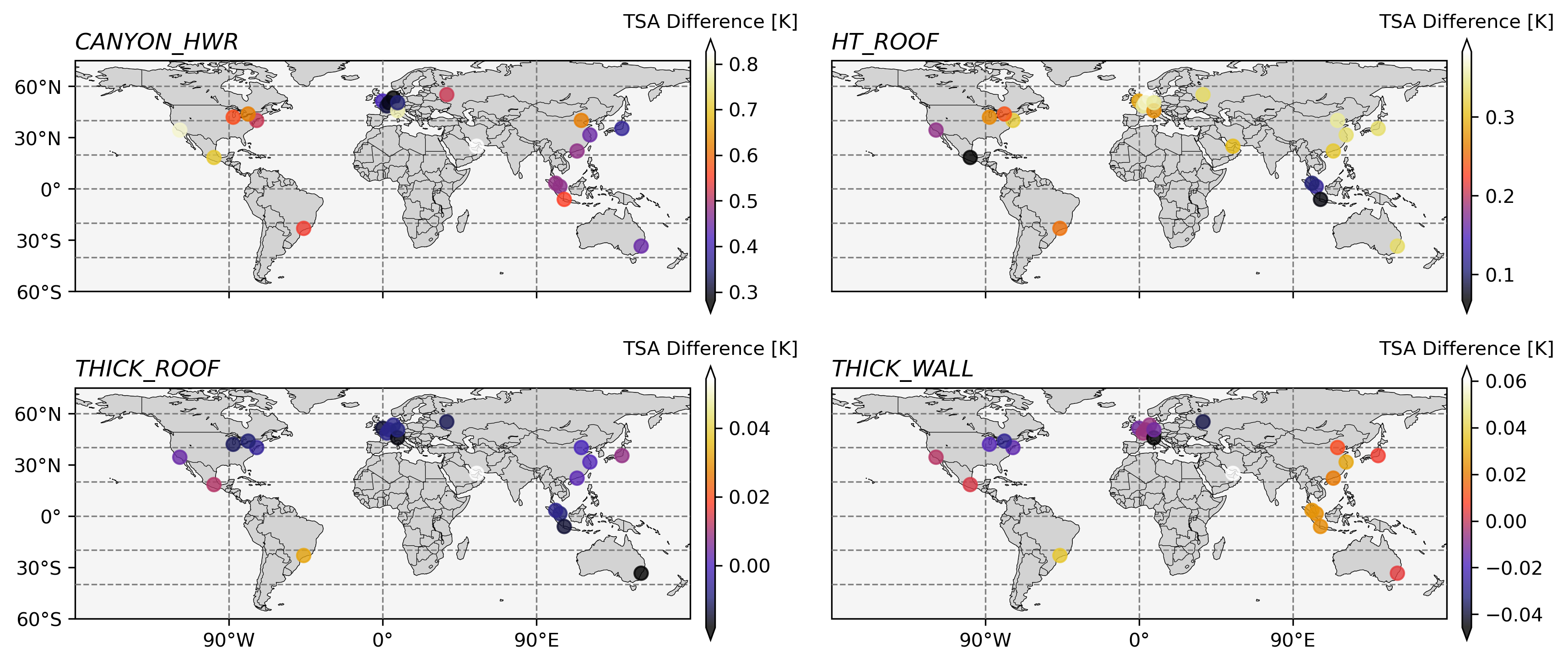

Morphological sensitives.

---

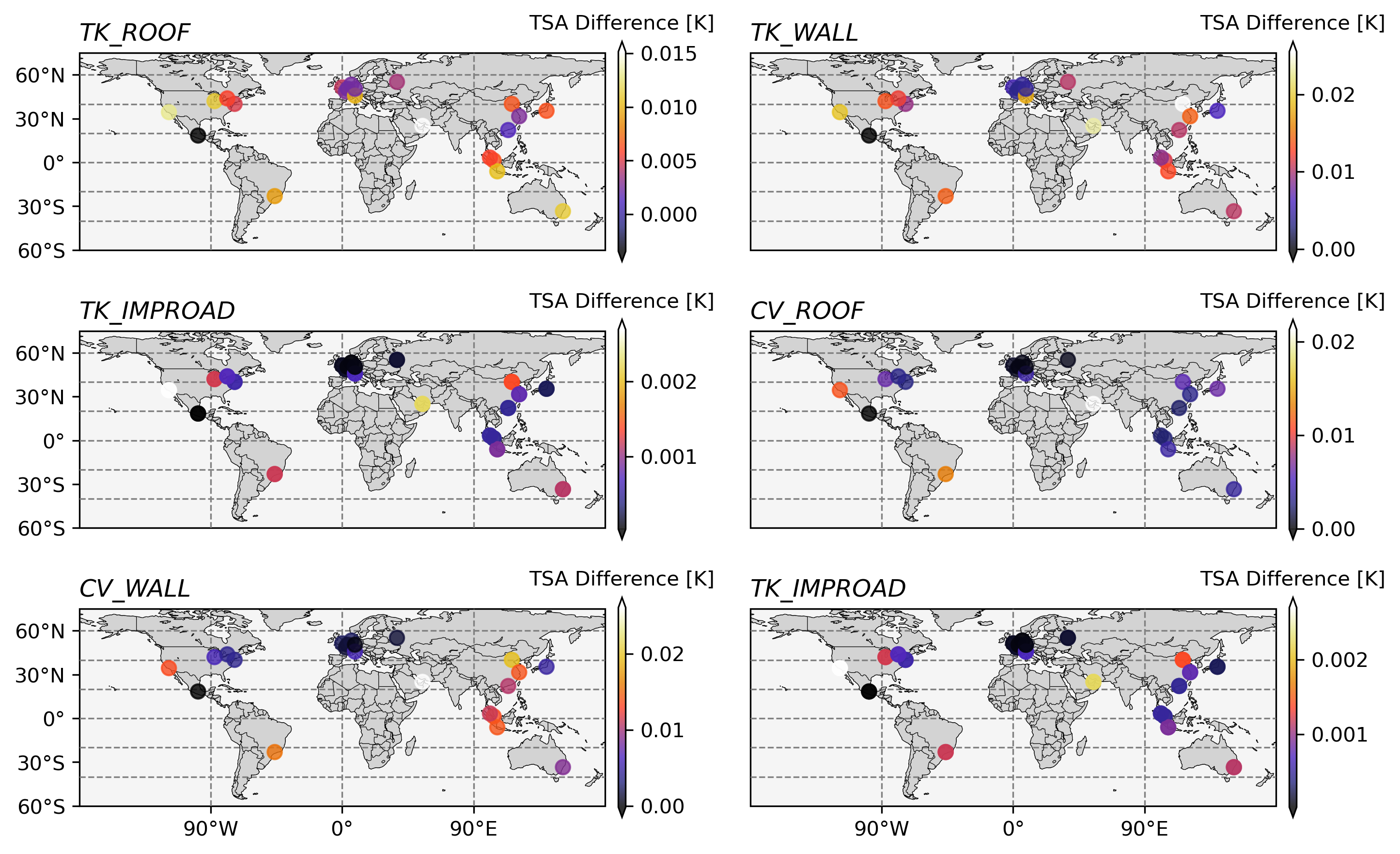

Thermal sensitives.

ref code

import os
os.chdir('/home/zhonghua/docker/DRL_urban_climate_adaptation/RLctsm/')

import sys
sys.path.append('/home/zhonghua/docker/DRL_urban_climate_adaptation/RLctsm/')

from utils.cesm import *
from utils.ini_env import *
def run_case(i, sur_var, case_year="2055", script_name = "PTS_SSP370_up.sh"):
    print(now_time())

    CASESCRIPT = "/p/project/clm5.0/cime/scripts"
    CASESCRIPT_local = "/home/zhonghua/p/project/clm5.0/cime/scripts"
    CASEROOT_local = "/home/zhonghua/p/scratch/CESMDATAROOT/CaseOutputs"
    DOUT_S_ROOT = "/home/zhonghua/p/scratch/CESMDATAROOT/Archive"

    scriptpath = f"./scr/{script_name}"
    configpath = "./notebook/config_SSP370_up.json"

    cesm = cesm_run(CASESCRIPT, CASESCRIPT_local, CASEROOT_local, DOUT_S_ROOT, configpath)

    cesm.config['case_lat'] = case_loc[i]['case_lat']
    cesm.config['case_lon'] = case_loc[i]['case_lon']

    cesm.config['case_start_year'] = case_year
    cesm.config['case_end_year'] = case_year

    cesm.config['fsurdat'] = cesm.config['fsurdat'].replace('env_id',str(i)+"_"+cesm.config['case_name'])
    local_fsurdat_temp = copy.deepcopy(cesm.config['local_fsurdat']).replace('env_id','')
    cesm.config['local_fsurdat'] = cesm.config['local_fsurdat'].replace('env_id',str(i)+"_"+cesm.config['case_name'])

    # copy the surface data
    copy_file_if_not_exists2(local_fsurdat_temp,
                                cesm.config['local_fsurdat'],
                                cesm.config['case_lon'],
                                cesm.config['case_lat'],
                                )

    with open(f"/home/zhonghua/p/pyscripts/{script_name}", "w") as f:
        f.write(cesm.create_case(scriptpath))

    alb_paramdict = dict(lsmlat=0, lsmlon=0, numurbl=1)

    if sur_var == "None":
        pass

    else:
        ds = xr.open_dataset(cesm.config['local_fsurdat'])

        if sur_var in ['ALB_IMPROAD','ALB_ROOF','ALB_WALL'] :

            actions = {
                    sur_var+"_DIR": ds[sur_var+"_DIR"].loc[alb_paramdict].values * 1.2,
                    sur_var+"_DIF": ds[sur_var+"_DIF"].loc[alb_paramdict].values * 1.2,}

        else:

            actions = {sur_var: ds[sur_var].loc[alb_paramdict].values * 1.2}

        # * Modify the surf file
        cesm.modify_surf(var=None, action=actions, param_location=alb_paramdict)

    # password = "***"
    password = "***"

    # change the permission of the script
    command_0 = f"sudo -S docker exec myclmu chmod +x /p/pyscripts/{script_name}"
    run_command(command=command_0, password=password)

    # run the script
    command = f"sudo -S docker exec myclmu sh -c '/p/pyscripts/{script_name}' "
    run_command(command=command, password=password)

    l = ['TREFMNAV','TREFMXAV','TSA','RH2M']
    ds = cesm.nc_view()

    result = {}

    for var in l:
        ds1 = ds[var].assign_coords({'landunit': ds['land1d_ityplunit'].values})
        result[var+"_u"] = ds1.sel(landunit=8).values.flatten().tolist()
        result[var+"_r"] = ds1.sel(landunit=1).values.flatten().tolist()

    script = "sudo -S rm -rf " + cesm.config['local_fsurdat']
    subprocess.run(script, input=password, text=True, check=True, shell=True)

    return result

Temperature = {}


var_ls ={"morphological":['CANYON_HWR','HT_ROOF','THICK_ROOF','THICK_WALL'],
        "radiative": ['ALB_IMPROAD','ALB_ROOF','ALB_WALL'],
        "thermal":[
        'TK_ROOF','TK_WALL','TK_IMPROAD','CV_ROOF','CV_WALL','TK_IMPROAD']
}

var_ls_ls = ['None']

for i in range(1, 25):
    for sur_var in var_ls_ls:
        result = run_case(i=i, sur_var=sur_var)
        Temperature[str(i)+sur_var] = {
            "data": result,
            "loc": case_loc[i],
            "action": sur_var
        }

        with open("SSP370_urban_properties_none.json", "w") as f:
            json.dump(Temperature, f)

    # reset the cases
    command_0 = f"sudo -S docker exec myclm rm -rf /p/scratch/CESMDATAROOT/CaseOutputs/ssp370up"
    run_command(command=command_0, password=password)
    command_1 = f"sudo -S docker exec myclm rm -rf /p/project/clm5.0/cime/scripts/ssp370up"
    run_command(command=command_1, password=password)
